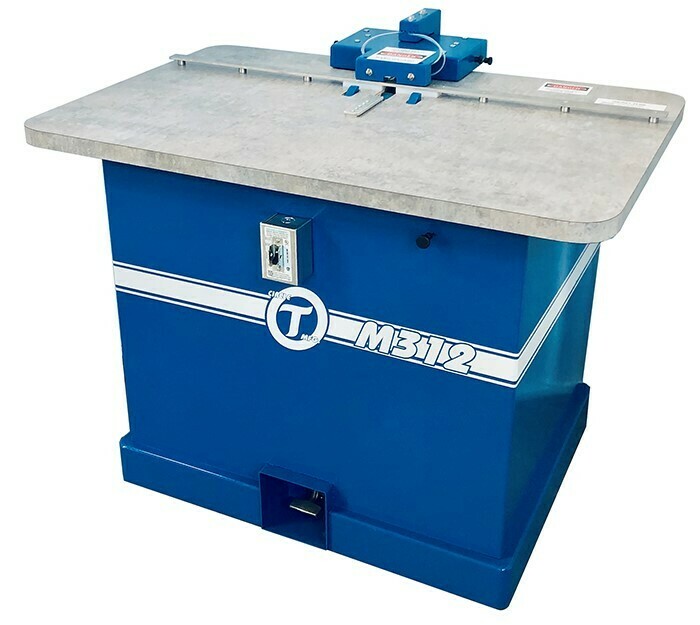

Circle T Drawer Box Notcher

SKU M312
$0.00
In stock
1
Product Details

The M312 Drawer Box Notcher simultaneously produces a drawer box notch with a drilled locating hole.

  • Notch Dimension: 35mm W x 1/2" H
  • Locating Hole Diameter: 6mm
  • Operating Performance: Over 200 boxes per hour

DRIVE PACKAGE SPECIFICATIONS:

  • Main Motor: 1.5 HP
  • Pneumatic Drill Included
  • 8" Dedo Cutter
  • Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Package as well

UTILITY REQUIREMENTS

  • Dust Collection Requirements: 670 CFM, 4" Outlet
  • Pneumatic Requirements: 90-100 PSI to power drill and control system

DIMESION SPECIFICATIONS:

  • Table Size: 22" x 48"
  • Table Height: 36"
  • Footprint: 52" W x 42" D X 42" H

SHIPPING WEIGHT: 625bs

NET WEIGHT: 460lbs
