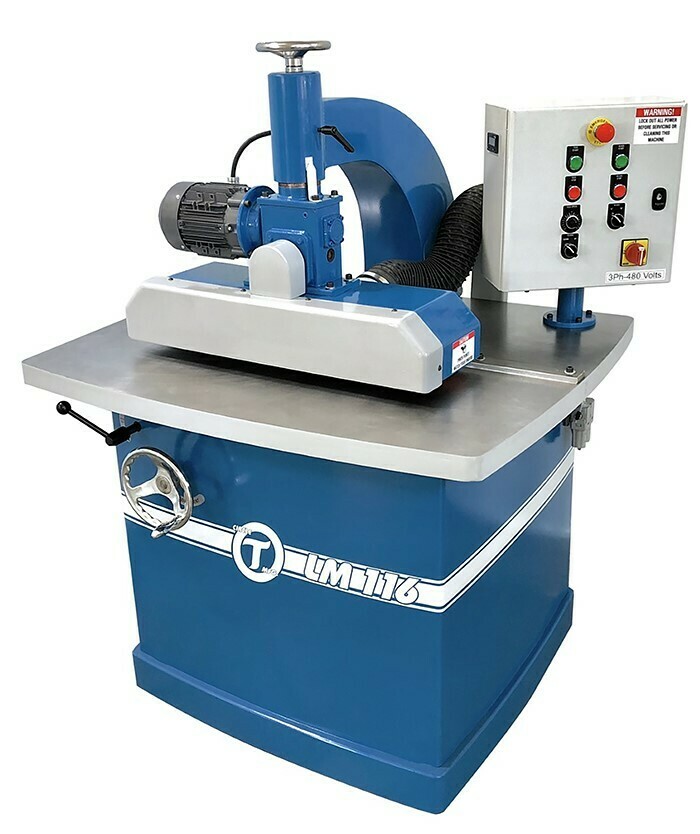

Easy Lock Miter Machine

SKU LM116
$0.00
In stock
1
Product Details

The Circle T Easy Lock Mitre machine is arguably the highest trending machine in the industry and becoming a "must have" solution for most of our clients as it is the most efficient way to process lock miter joints. The LM116 Easy Lock Miter Machine produces precise lock miter joints for pillar wraps and cabinetry. Achieve your desired lock miter joints using a single spindle with A and B profiles.

APPLICATION SPECIFICATIONS:

  • Maximum Material Thickness: 1"
  • Minimum Material Thickness: 1/2"
  • Minimum Material Width: 1-1/4"
  • Minimum Material Length: 12"
  • Capable of Machining Angles from 90 - 30 Degrees (Finish Angle)
  • Spindle Motor: 5 HP, 230/460v, 3ph
  • Feed Motor: 0.5 HP
  • Spindle Diameter: 1-1/4"
  • Spindle Speed: 7,600 RPM
  • Variable Speed 11-Roll Positive Grip Feeder
  • Dust Collection Requirements: 670 CFM, 4" Outlet
  • Pneumatic Requirements: 100 PSI .5 CFM
  • 20 AMP Disconnect at 480V 3phase
  • Table Size: 40" x 47"
  • Footprint: 54"W x 42"L x 60"H
  • Shipping Dimensions 49"W x 66"L x 79"H
  • Net Weight = 1,200 lbs
