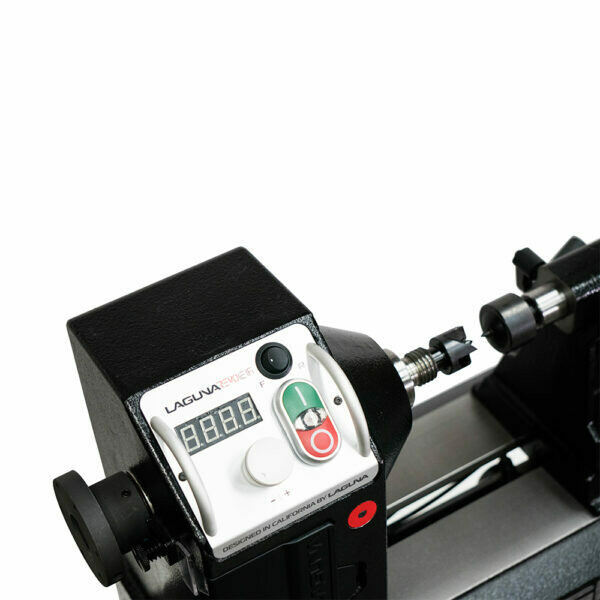

Revo 12 | 16 Lathe

MLAREVO1216EVS
$999.00
In stock
1
Product Details
UPC: 156199263
Brand: Laguna

The Laguna Revo 12 | 16 Midi Lath features a Pulse Width Modulation system motor for constant torque at every speed and a 45° chamfered banjo.

Features

  • Electrical Requirements: 100V-1Ph-60Hz
  • Recommended Breaker Size: 110V – 15 Amp
  • Speed Range High: 650 – 3500 RPM
  • Speed Range Mid: 325 – 1750 RPM
  • Speed Range Low: 50 – 525 RPM
  • Distance Between Centers: 15.5″
  • Swing Over Bed: 12-1/2″
  • Swing Over Banjo: 9-1/2″
  • Max Outboard Swing: 16″
  • Spindle Bore: 3/8″
  • Spindle Taper: MT2
  • Spindle Thread: 1″ x 8 TPI (both ends)
  • Front Bearing: 6006LLU
  • Rear Bearing: 6005LLU
  • Indexing: 24 Positions with Lock
  • Drive Belt: Poly-V Belt 6 Grooves
  • Tail Stock Quill Travel: 2-1/2″
  • Tail Stock Taper: MT2
  • Bed Length: 29.4″
  • Tool Rest Length: 6″
  • Tool Rest Post Diameter: 1″
  • Faceplate Diameter: 3″
  • Certification: CSA C/US 256540
  • Floor To Bed Height: 6.7″ no pads
  • Floor To Spindle Center: 13″ No Pads
  • Overall Size (L x W x H): 29.4″ x 8.9″ x 17.4″
  • Shipping Dimensions (L x W x H): 35.8″ x 14.6″ x 20.5″
  • Net Weight: 118 lbs
